Plastic Bottle Unscrambler Machine

Plastic Bottle Unscrambler Machine

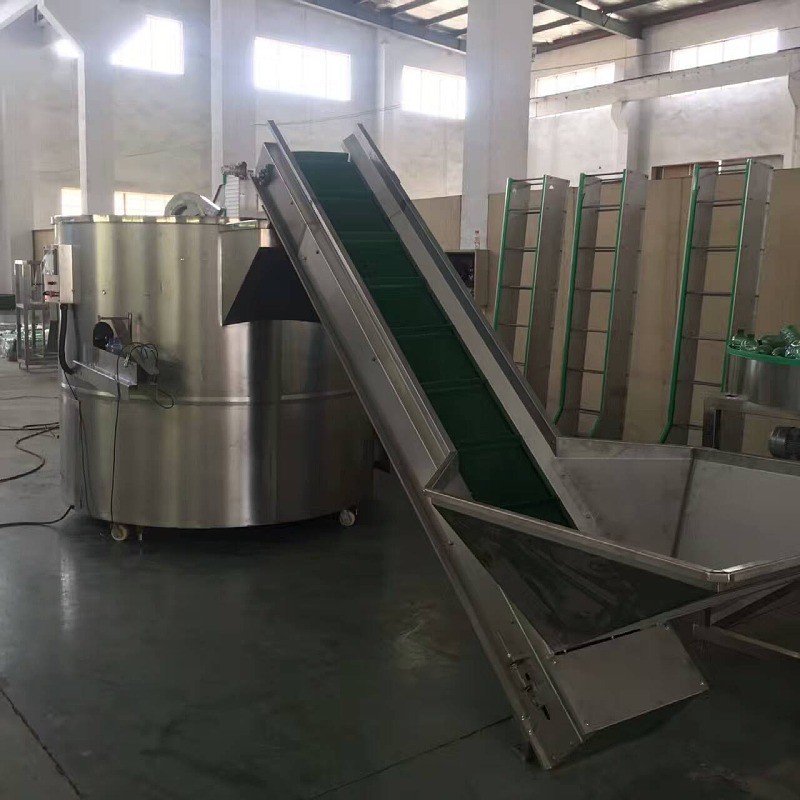

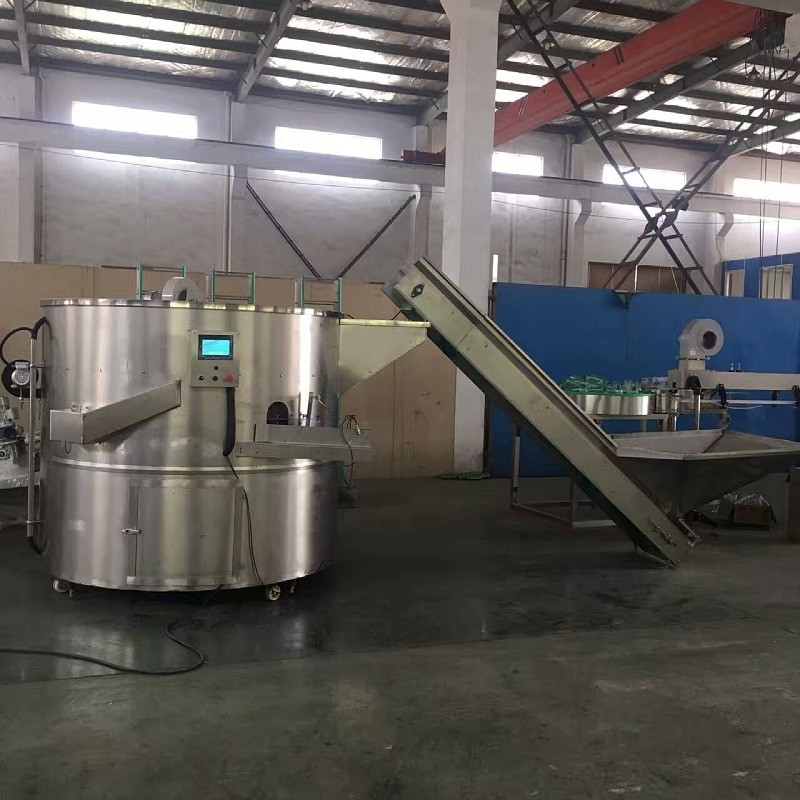

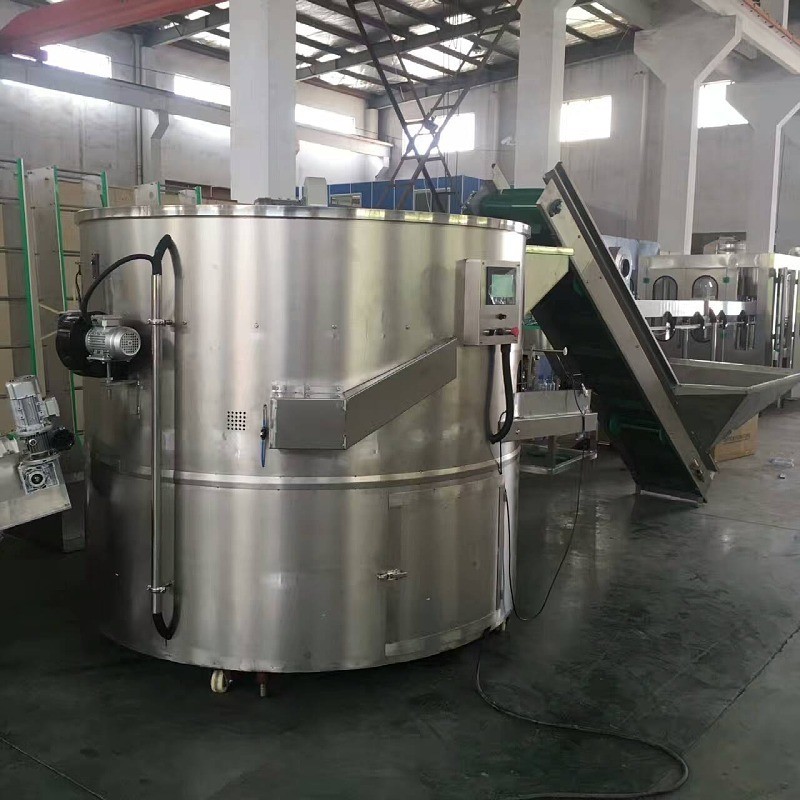

The Plastic Bottle Unscrambler Machine is an essential automatic auxiliary device for automated packaging

and filling production lines. It is professionally designed to sort, organize, upright, and convey disordered empty

plastic bottles stably and continuously. Replacing traditional manual bottle sorting, this machine realizes full-automatic

 bottle feeding, effectively solving production bottlenecks caused by low manual efficiency, irregular bottle placement

and high labor costs. Widely compatible with various plastic bottles such as PET, PE, and PP, it is the core front-end

equipment for standardized and high-efficiency packaging production in multiple industries.

Our automatic plastic bottle unscrambler adopts mature mechanical transmission and intelligent PLC control system,

featuring stable operation, low failure rate and strong compatibility. It can seamlessly connect with filling machines,

capping machines, labeling machines and other packaging line equipment to support fully automated one-stop

production, greatly improving the overall production efficiency of the factory.

Technology parameter：

• Working position: 24

• Rated production capacity: 27000-28000B/H

• Gas pressure: 0.7MPa

• Gas consumption: 2M3/Min

• Suitable bottle type: diameter 50-96mm, height 165-310mm

• Main motor power: 3Kw

• Bottle elevator power: 0.75Kw

• Blower power: 2.2Kw

• Overall dimension: Φ3400×2650

• Weight: 5000Kg

Main Configuration:

PLC: MITSUBISHI/OMRON

Inverter:MITSUBISHI/OMRON

Touch screen: THINGET,TAIWAN

Photoelectric:AUTONICS,KOREA

Contactor:SCHNEIDER,FRANCE

Air conveyor: Stainless steel,2.4m
