Automatic Plastic Box Washer Machine

This Turnover Box Washing Machine is an automatic cleaning device with intelligent control. It is specially used for large-scale washing of plastic turnover boxes, crates and baskets.
It adopts high-pressure spray to clean dirt and residues automatically, made of food-grade stainless steel, suitable for food, beverage and logistics industries, saving labor and improving cleaning efficiency.

EMAIL

Automatic Stainless Steel Tray Plastic Box/Basket/Crate Washer Steam Heating



Stainless steel tray plastic box/basket/crate washing machine is mainly the comprehensive use of high pressure spray, brush cleaning and hot water washing and other technologies to achieve efficient and thorough cleaning of the fence frame. Our washers are versatile and can clean a wide range of stainless steel tray plastic box/basket/crate,tray paper and stainless steel or plastic mesh sieve.

Features

1. Stainless steel crevice free construction.

2.Variable speed drives - ranging from 100 units per hour up to 2000 units per hour.

3.Stainless steel, quick release 360° jetting.

4.Washing pressures of 60-80 psi provide an effective wash to ensure surface of your product are thoroughly cleaned.

Options

1. Single and twin track options.

2.Heating via electric, steam or gas.

3.Pre-wash and heated rinse options.

4.Air knife blowers for water removal.

5.Heated drying tunnels options.

6. High pressure jetting for labels and stubborn soil removal.

Scope of application:

Commonly used containers in the food industry:

Turnover boxes, stainless steel trays, plastic baskets, plastic insulated boxes

Commonly used containers in the meat products industry:

Small material carts, quick-freezing trays, quick-freezing baskets, turnover boxes

Commonly used containers and utensils in the automotive parts, electronic components, and printing and dyeing industries

Turnover boxes, turnover baskets, blister trays, auto parts molds, pallets, platforms

Commonly used containers and utensils in the baking industry

Cake baskets, pastry molds, baking trays, egg trays

Commonly used containers for the disposal of medical waste and domestic garbage:

Medical waste turnover boxes, large medical waste turnover boxes, domestic garbage bins

Commonly used containers in logistics and warehousing, ecological agriculture, and animal husbandry industries:

Logistics pallets, soilless cultivation pallets, and breeding cage equipment.

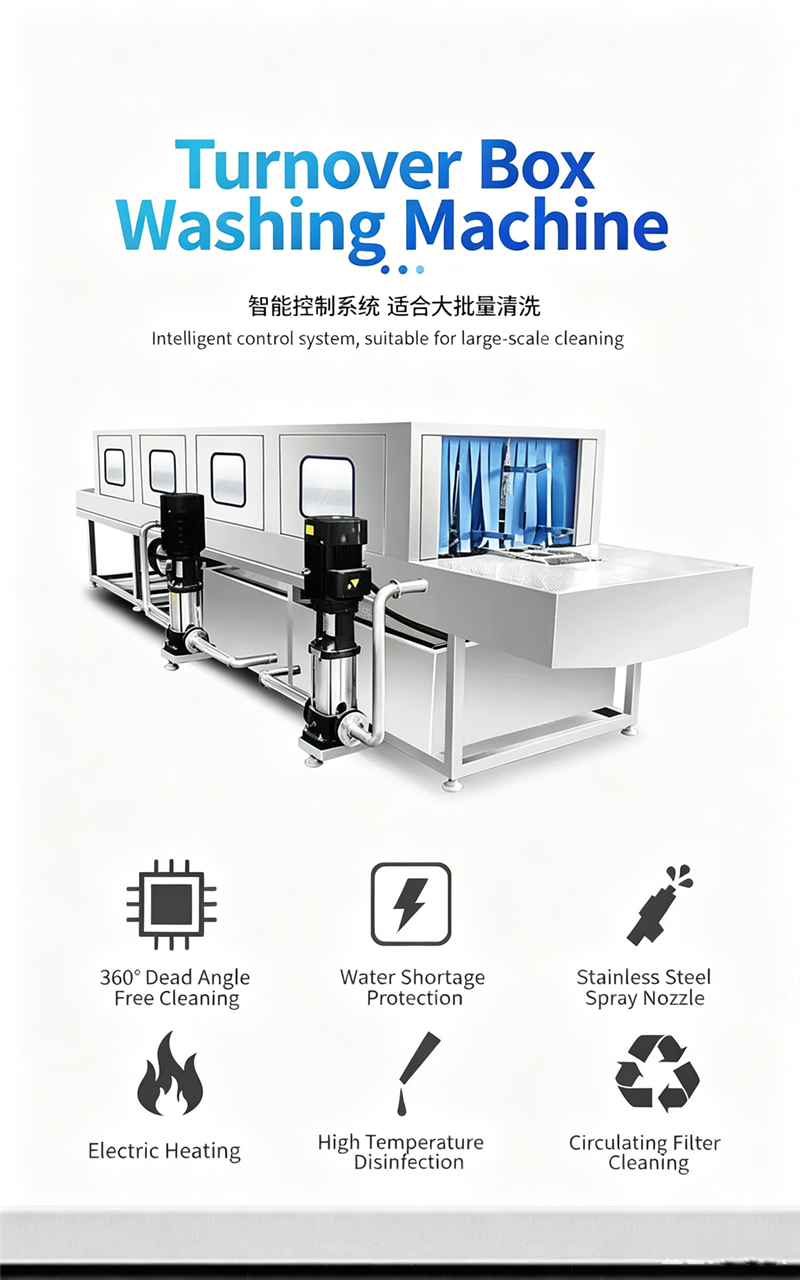

Basket washing machine.png

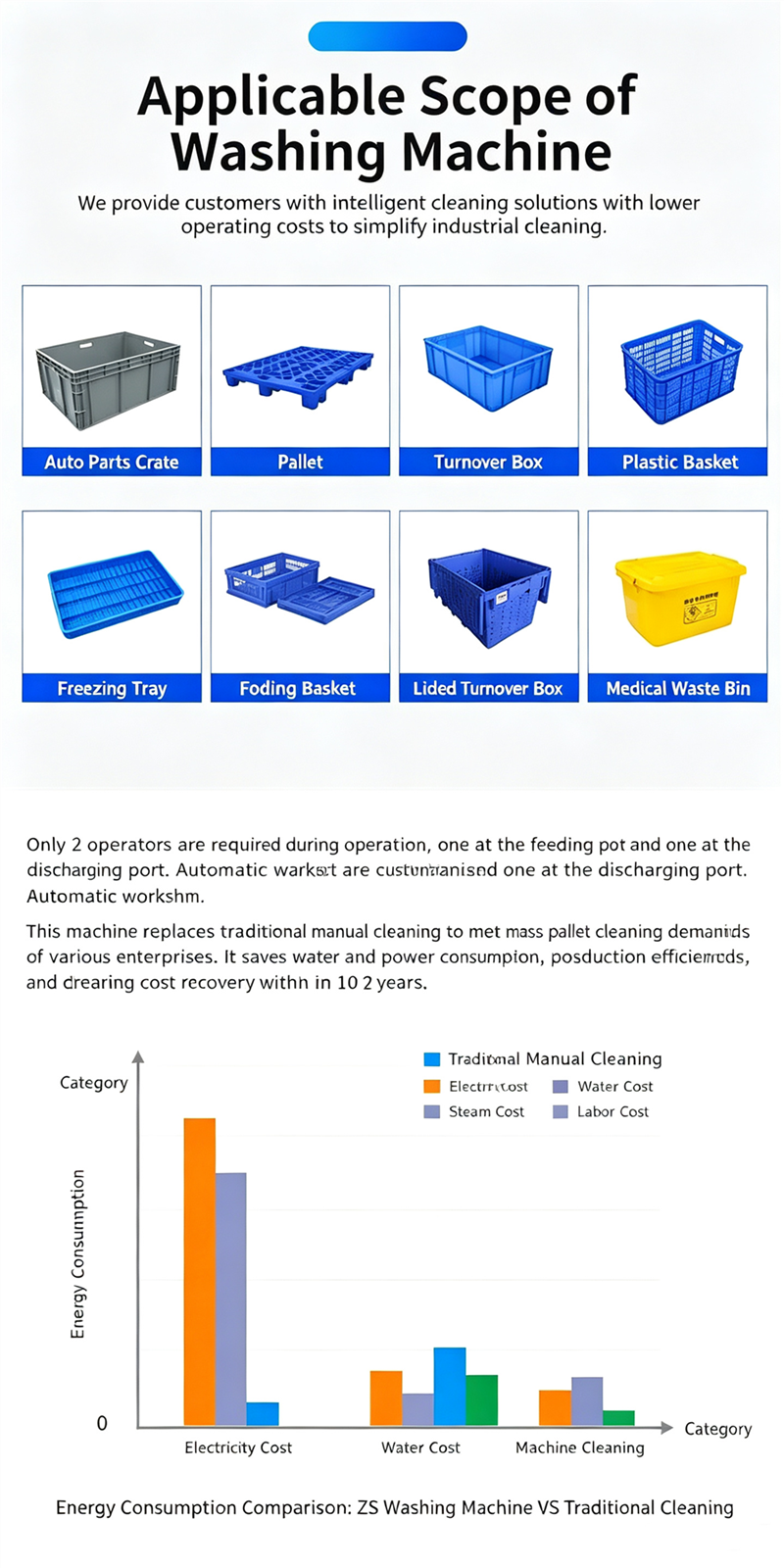

Basket washing machine (3).png

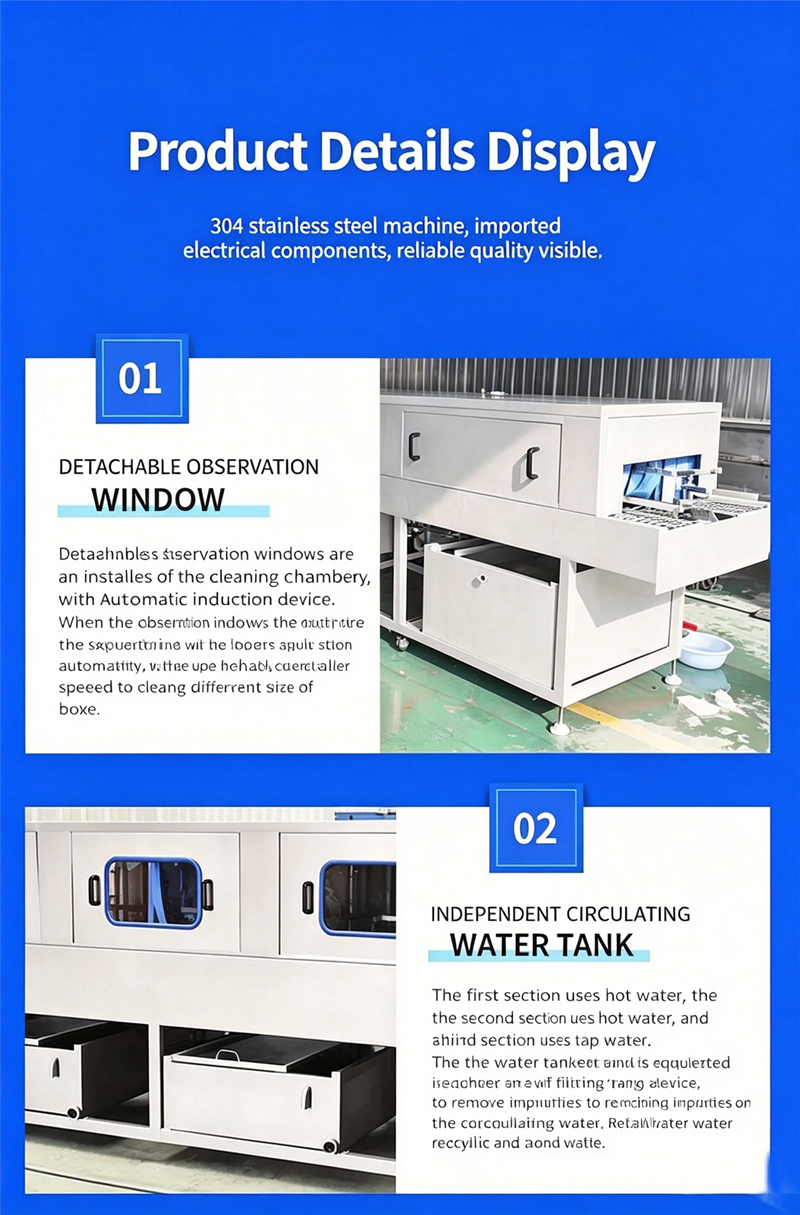

Basket washing machine (4).png

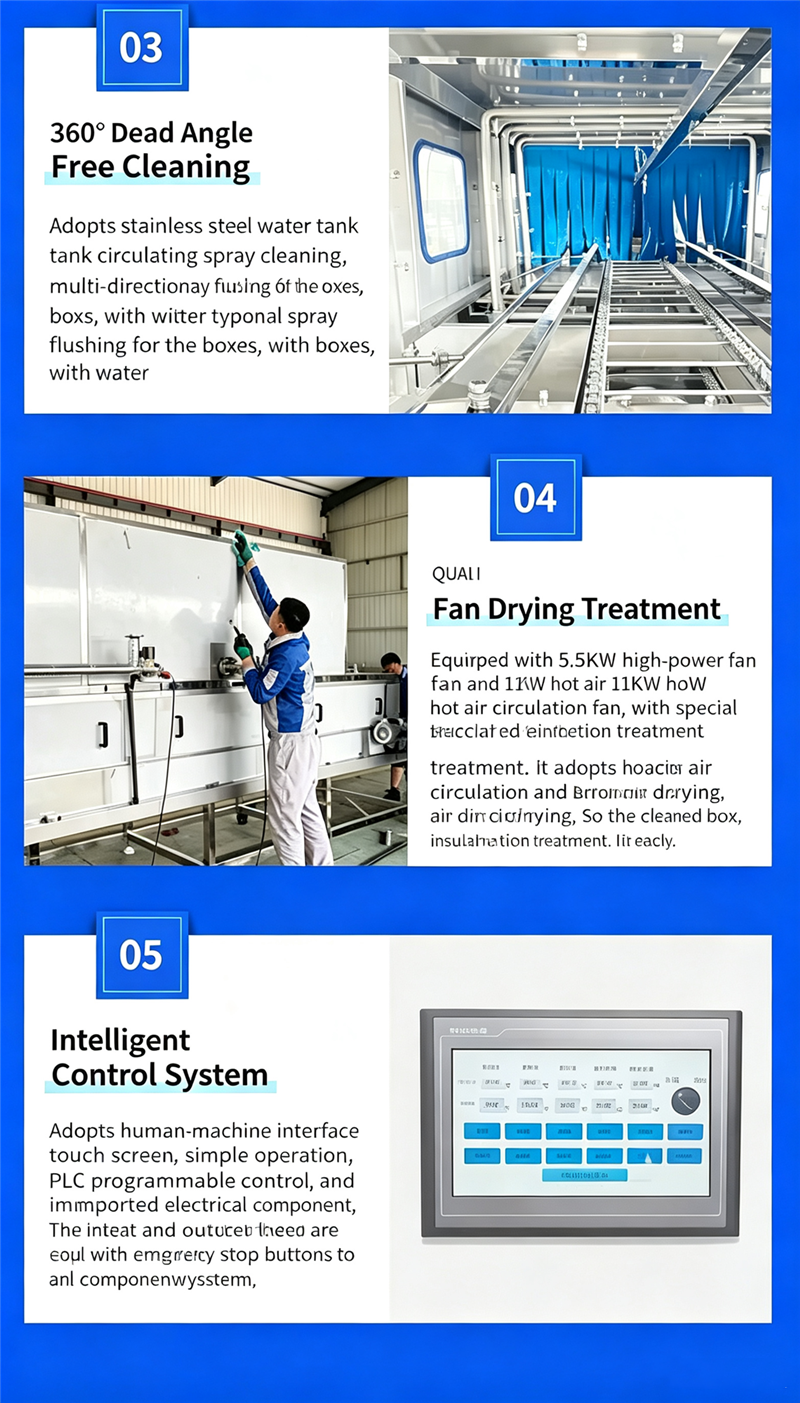

Basket washing machine (5).png

Product Description

Basket washing machine, also called turnover basket washing machine and pallet cleaning machine. The pallet cleaning

 machine achieves the purpose of cleaning and sterilization through high-temperature (above 60°) and high-pressure (1.0MPA)

 cleaning and removes moisture on the surface of the pallet through high-pressure and large air volume air knives.

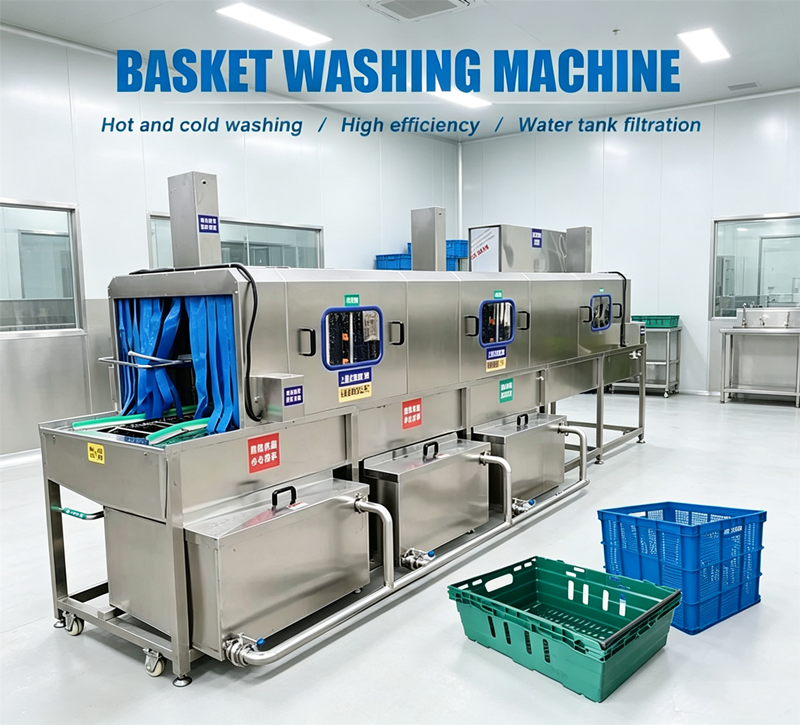

Basket washing machine (6).png

Name

Section

Two Sections

Three Sections

Five Sections

Length/Width/Heigh

3000*1700*1700

4000*1700*1800

6100*1700*1900

8000*1700*1700

Machine plate

SUS304

Power supply

380V/50HZ

Total power

9

16.5

19.5

34.5

Steam consumption

0.3T/H

Water supply pressure

4KG

Thickness

3mm

Steam pressure Mpa

0.6Mpa

Electric heating

15kw/per

Workload

100-500units

300-800units

800-1200units

1000-1500units

Working height

1000mm

Water consumption

0.5m*3/one tank

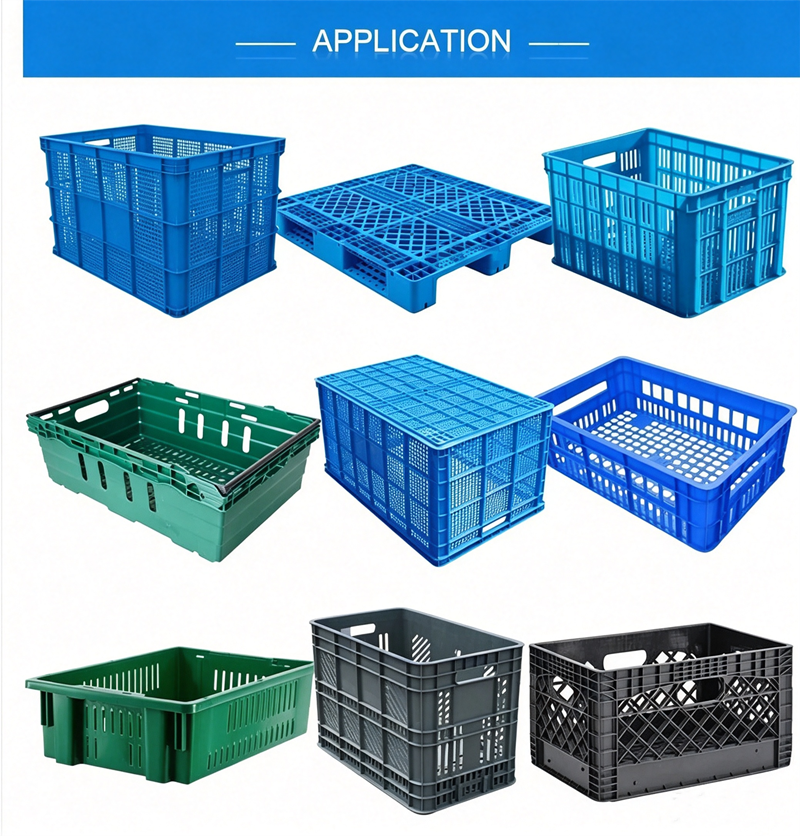

 Basket washing machine (7).png

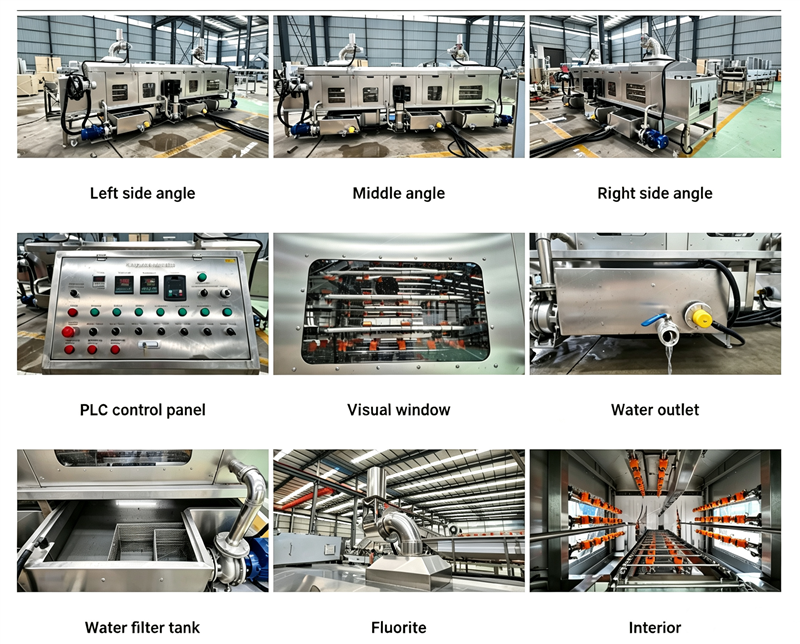

Basket washing machine (8).png
