Round Barrel Brush Machine

The high-pressure inner and outer drum washing machine is a revolutionary product of the drum washing machine. It is the killer of stubborn stains on green moss: the high-pressure inner and outer drum washing machine can solve the pain points of washing in water plants.
360 degree * * * high-pressure water jet cleaning. Forward and reverse solve the problem of difficult cleaning of the inner wall and bottom of irregular barrels.
20-120 kg pressure regulation. Clean with a brush outside.
There is no residue on the inner and outer walls, and there is no wear or scratch on the barrel.

Round Barrel Brush Washing Machine

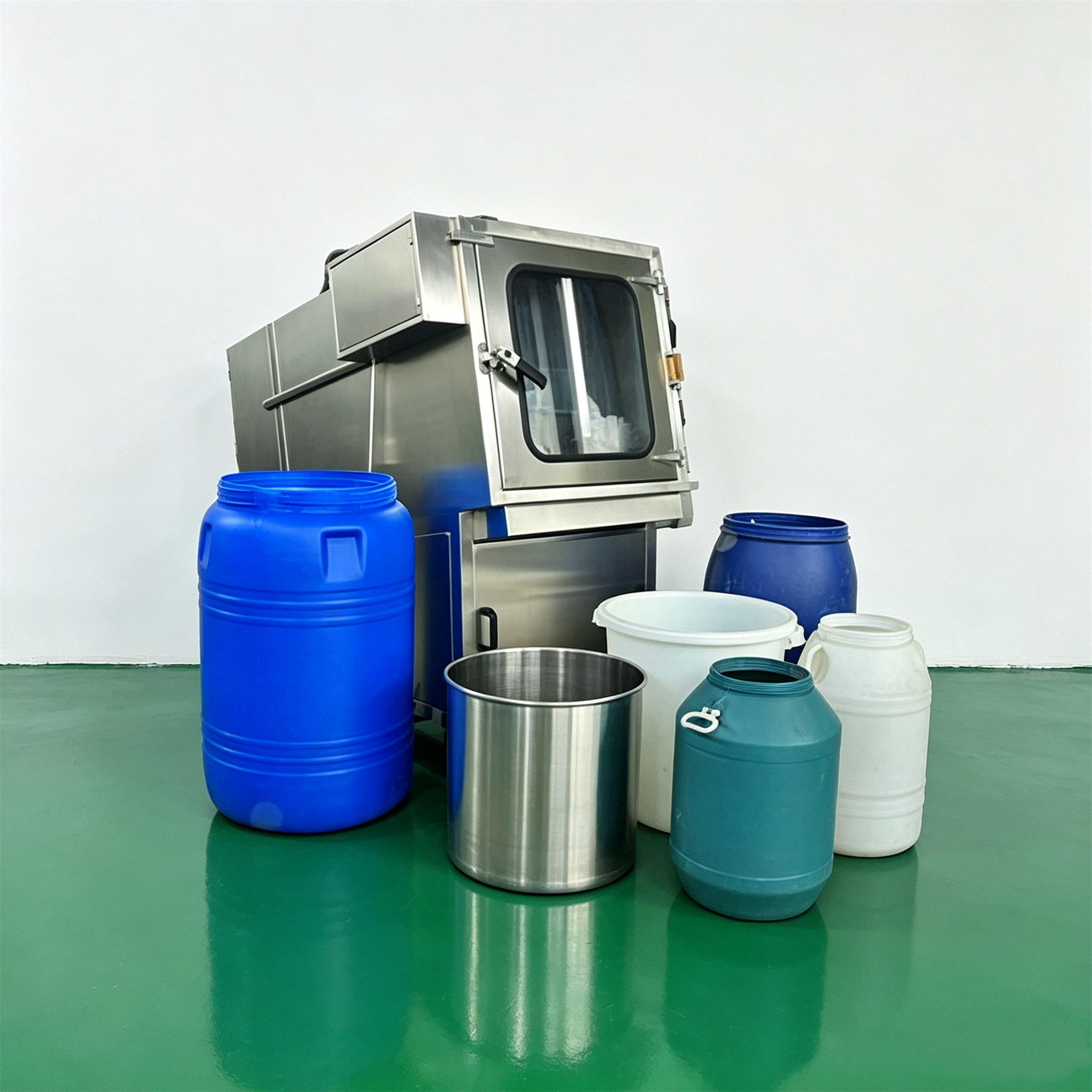

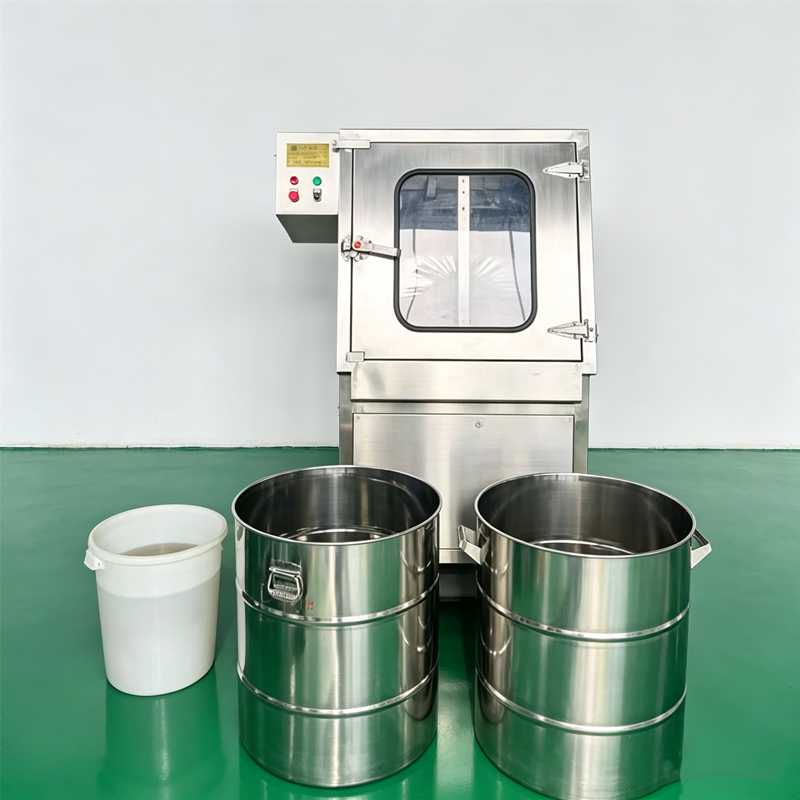

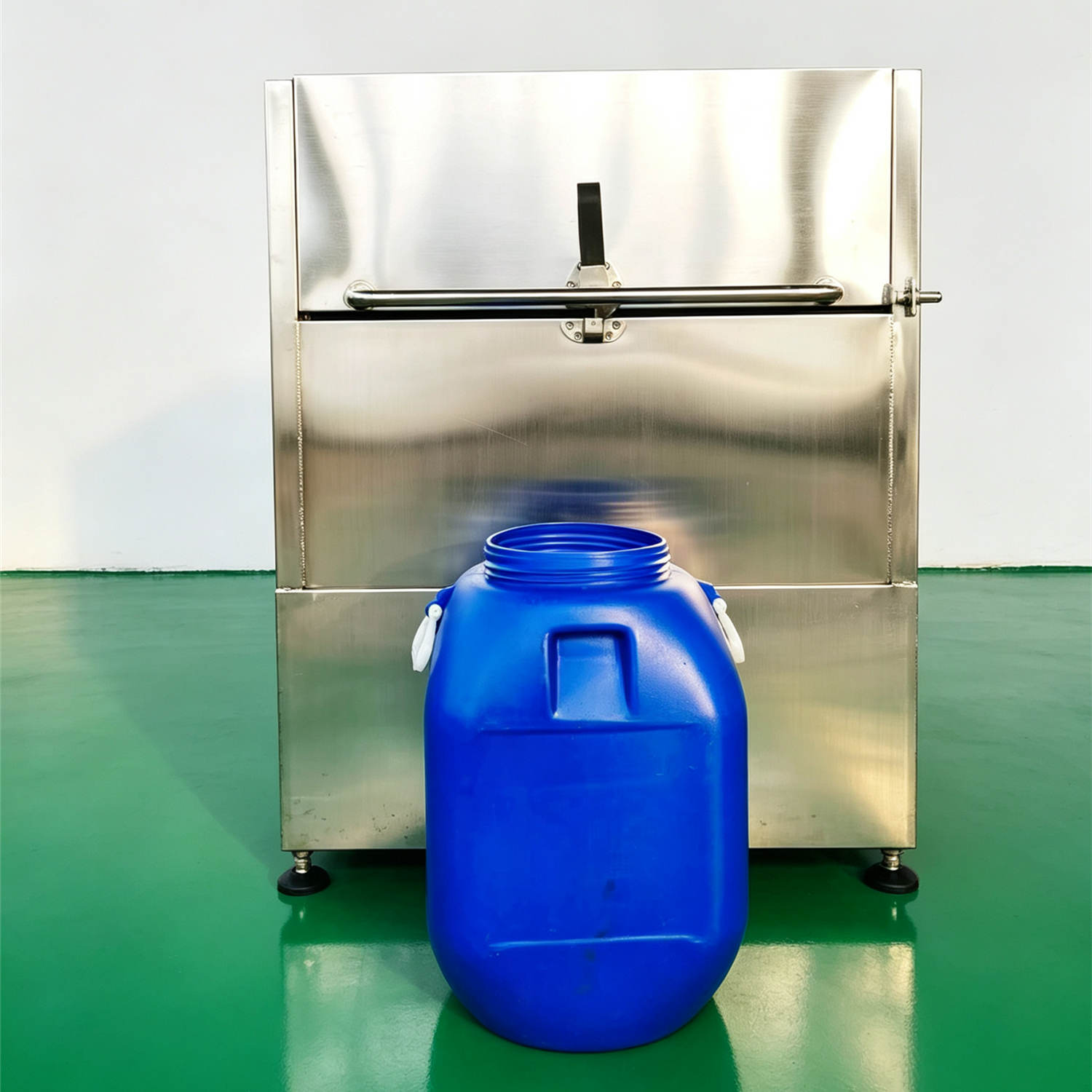

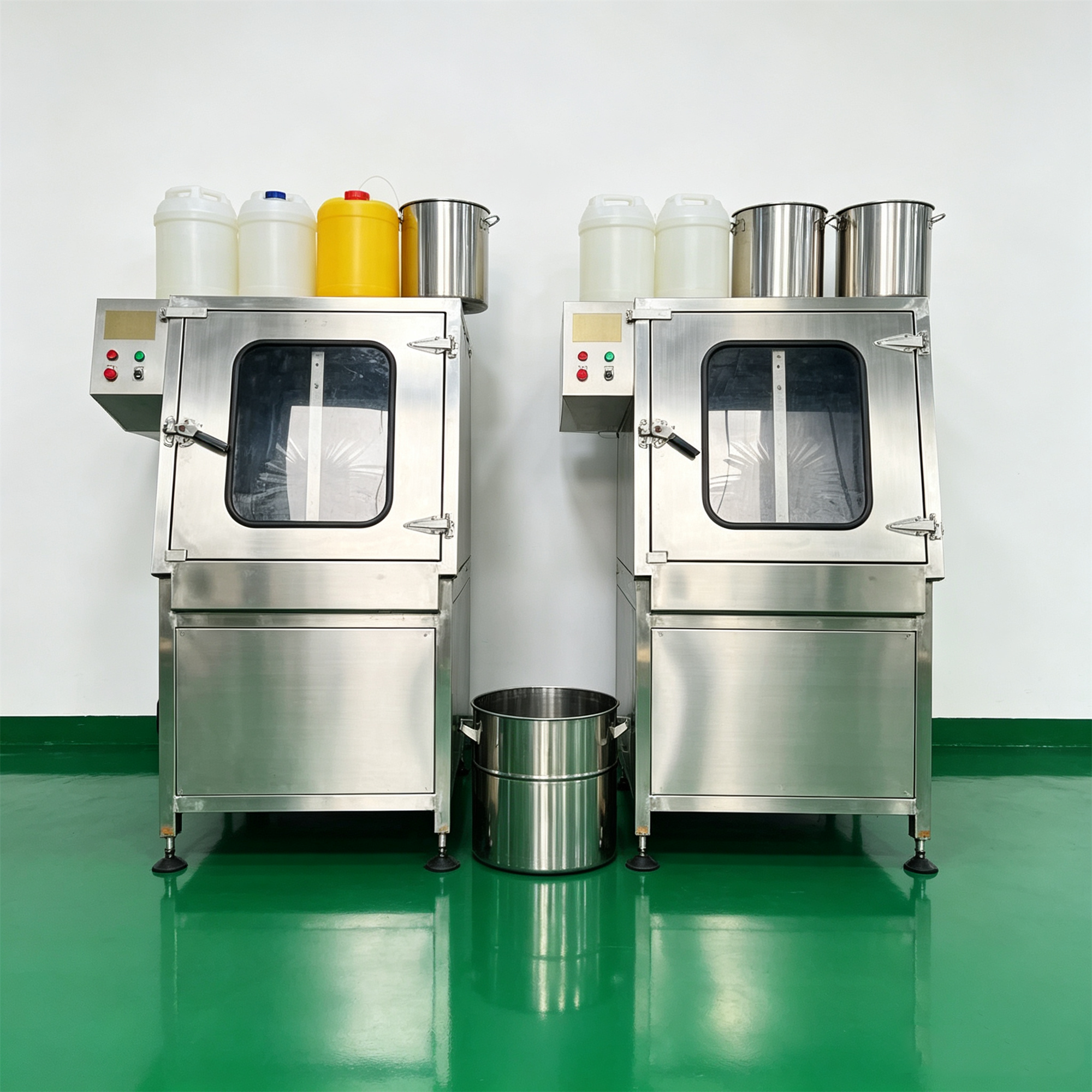

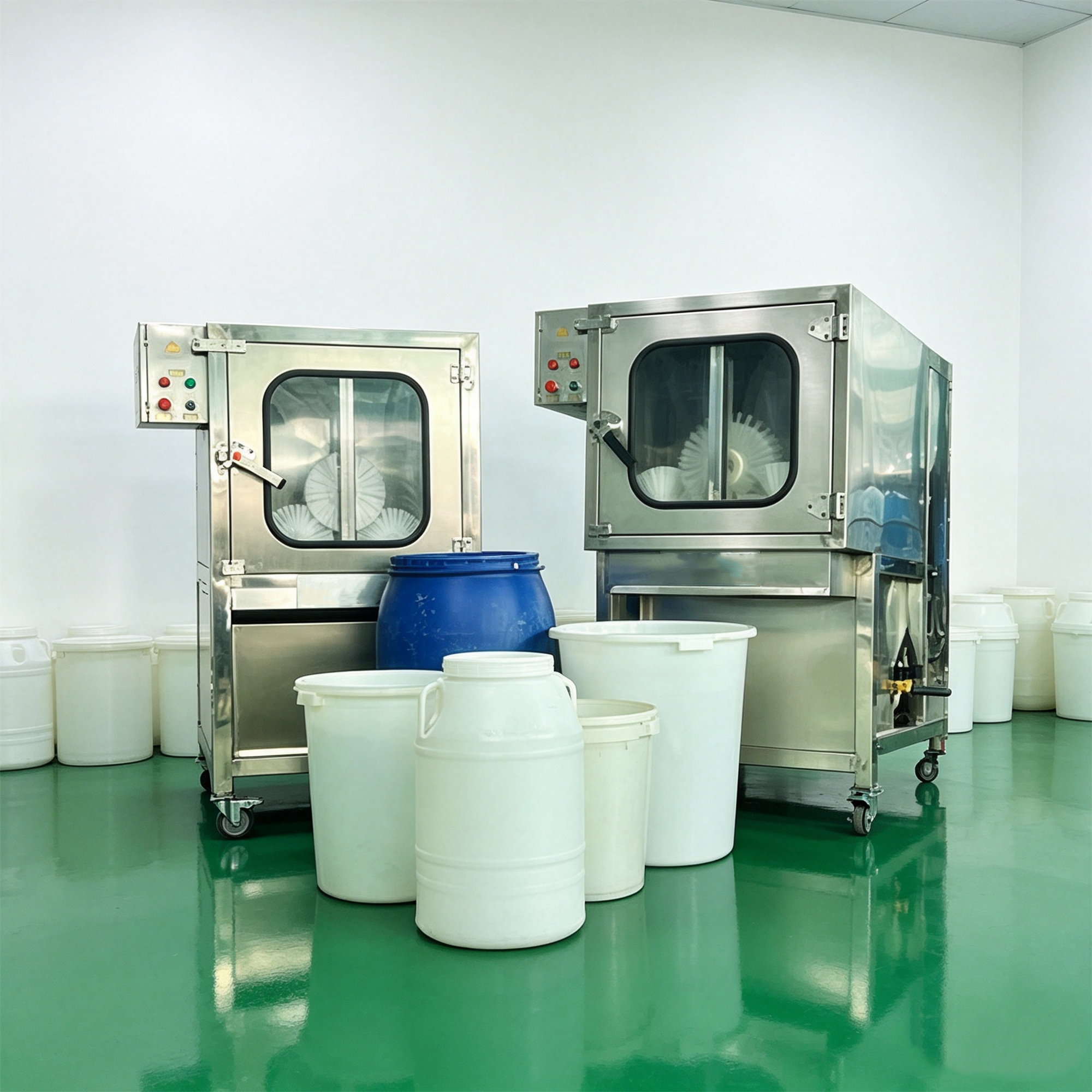

Our Automatic Round Barrel Brush Washing Machine is a heavy-duty stainless steel cleaning solution for 20L–200L plastic chemical drums, paint pails, food and ink barrels. The whole machine adopts 304 stainless steel, featuring acid and alkali resistance to fit various cleaning agents and hot washing environments.

Designed with a fully sealed visible cabin with transparent observation window, it stops sewage splashing and lets operators monitor cleaning progress clearly. Built-in internal and external rotary nylon brushes work with high-pressure spray to thoroughly strip residual paint, grease and solid sediment from barrel inner and outer walls automatically.

Equipped with brake casters and adjustable support feet, the machine can be freely moved and fixed in workshops. The bottom integrated water recovery cabinet facilitates sewage collection and maintenance. Full automatic program control simplifies operation with emergency stop protection.

It effectively replaces manual scrubbing to cut labor costs, widely used in chemical, coating, food and ink factories. Optional heating, circulation filtration and variable frequency systems are available for customized production demands.

Key Features:

Full 304 Stainless Steel Body Anti-rust & acid-alkali resistant, suitable for detergent, hot water and chemical cleaning fluid working environments.
Fully Enclosed Visible Washing Chamber Transparent sight window + quick-lock door handles, real-time monitoring of barrel cleaning status, no water splashing.
Internal & External Synchronized Brush Scrubbing High-speed rotating nylon brush penetrates into barrel interior for deep wall cleaning; side brushes clean barrel outer surface simultaneously.
High-Pressure Spray Auxiliary Cleaning Hot water or cleaning agent spray dissolves stubborn caked residues for thorough cleaning effect.
Mobile & Stable Base Design 4 universal casters with brake + adjustable support feet, easy to move and fix the machine in place.
Integrated Lower Water Storage Cabinet Pull-out maintenance cabinet with handles for convenient sewage discharge, filter replacement and routine maintenance.
Automatic Program Control Side-mounted control panel with running indicator lights, emergency stop button and one-click automatic washing cycle, simple operation for workers.

Working Principle:

Place the inverted empty barrel into the machine’s cleaning station manually.
The machine locks the barrel automatically, and internal & external brushes start rotating at adjustable speed.
High-pressure circulating water mixed with cleaning liquid sprays continuously to soften residual dirt.
Brushes scrub barrel walls thoroughly for 30–90 seconds (customizable cycle time).
After cleaning, wastewater flows down to the bottom recovery tank for filtration and reuse.
The washing cycle finishes automatically, then take out the clean barrel for drying or secondary processing.

Application Industries & Suitable Barrels:

Applicable Barrels

20L / 50L / 125L / 200L round plastic barrels, chemical drums, paint pails, ink buckets, food liquid barrels, flavor & fragrance storage pails, waste liquid recycling barrels.

Applicable Industries

Chemical raw material factories
Paint & coating manufacturers
Food & beverage processing plants
Pharmaceutical & cosmetic workshops
Printing ink factories
Feed & additive production lines

Optional Custom Configurations.

Electric hot water heating system (high temperature degreasing)
Automatic chemical dosing device for alkaline/acid detergent
Complete water circulation filtration system (water saving & environmental protection)
Variable frequency motor (adjust brush rotation speed freely)
Explosion-proof motor & electrical components for hazardous chemical workshops
Custom size for special non-standard barrel dimensions

Product Advantages:

Labor Saving: Replace 3–5 manual cleaning workers, greatly reduce labor cost
Deep Cleaning Effect: Brush scrubbing + high-pressure spray removes hard-to-clean caked residues
Long Service Life: Corrosion-resistant stainless steel and wear-resistant nylon brushes
Flexible Mobility: Casters design supports cross-workshop use
Eco-Friendly: Recyclable washing water reduces industrial wastewater discharge
Low Operation Difficulty: Fully automatic cycle, minimal training required for operators
