Semi Automaitc 5 gallon bottle washing machine

Semi Automaitc 5 gallon bottle washing machine

The high-pressure inner and outer drum washing machine is a revolutionary product of the drum washing machine. It is the killer of stubborn stains on green moss: the high-pressure inner and outer drum washing machine can solve the pain points of washing in water plants.
360 degree * * * high-pressure water jet cleaning. Forward and reverse solve the problem of difficult cleaning of the inner wall and bottom of irregular barrels.
20-120 kg pressure regulation. Clean with a brush outside.
There is no residue on the inner and outer walls, and there is no wear or scratch on the barrel.

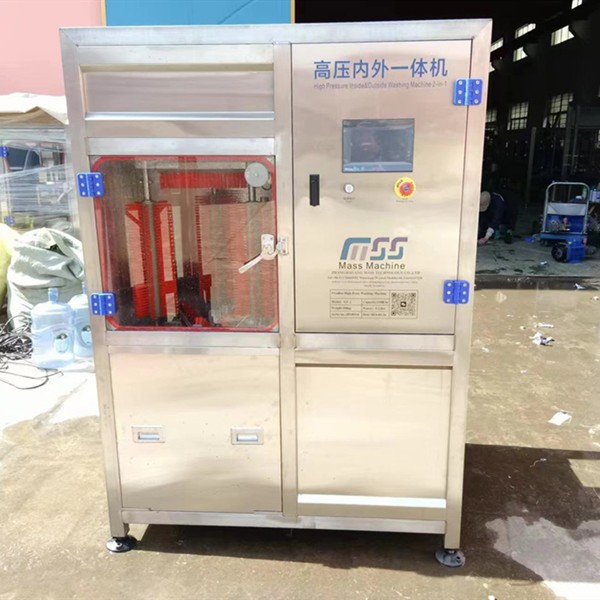

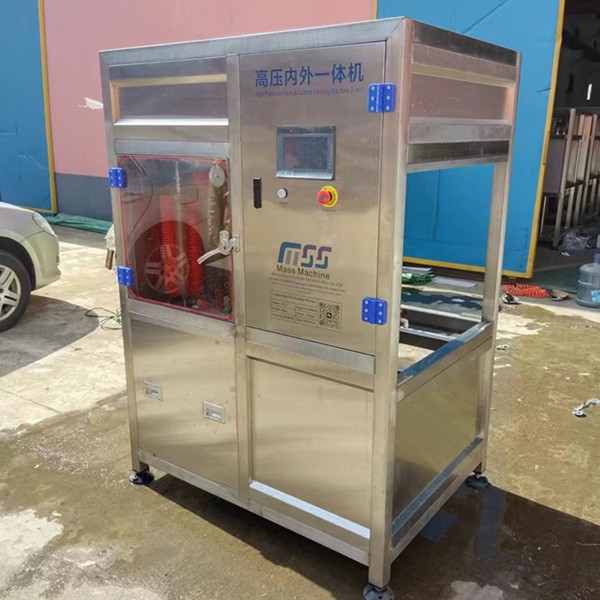

High Pressure Semi Automaitc 5 gallon bottle washing machine

The 5 gallon bottle washer adopts high-pressure spray technology, covering inner/outer bottle surfaces to remove residues like

scale and beverage stains. Equipped with a 304 stainless steel cleaning chamber, it resists corrosion and meets food-grade hygiene

standards—ideal for water plants, beverage factories, and recycling stations. The 5 gallon bottle washing machine operates at 2-3 bottles

per minute, balancing efficiency and cleaning quality.

2. 5 Gallon Bottle Washing Machine Technical Parameters

- Cleaning System：1 high-pressure nozzles (adjustable pressure 0.3-0.6MPa) for all-angle rinsing;

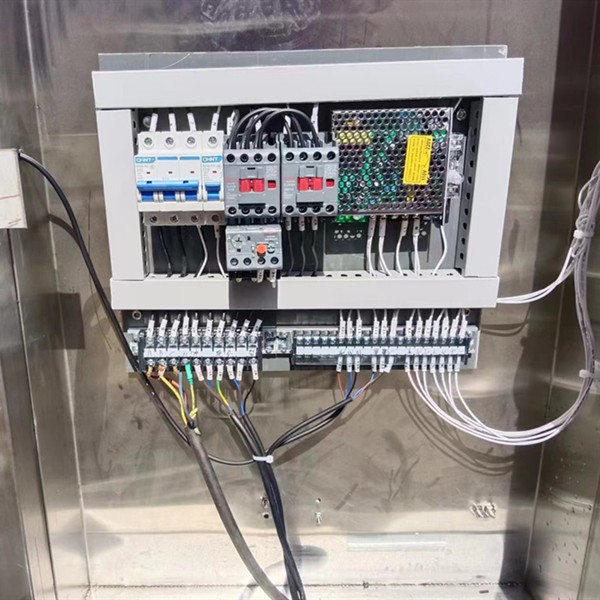

- Control Mode：PLC automatic control with touch screen, supporting batch cleaning and parameter storage;

- Compatibility：Fits 5-gallon PET/glass bottles, with adjustable clamping structure for different bottle necks.

3. 5 Gallon Bottle Washer Operation & Maintenance

Fill the water tank with cleaning agent (or hot water ≤80℃), place bottles in the fixture, and start the 5 gallon bottle washing machine

via the touch screen. After use, rinse the nozzles and filter to prevent clogging; the machine’s detachable parts simplify daily maintenance,

extending the 5 gallon bottle washer’s service life to 8-10 years.

Item	Parameter
Applicable bottle volume	3-5 gallon
Gallon bottle diameter	∮275mm
Gallon bottle height	490mm
production capacity	100-150BPH
Number of high pressure inner rinsing heads	1
Number of external brushes	3
Air consumption	500L/min
Power	Motor Power	4KW
	Washing water pump	1*0.37kw
	HP rinsing pump	1*4KW
Size	12009001700mm
Weight	150KG
