Semi-Automatic Bottle Shrink Wrapping Machine

Semi-Automatic Bottle Shrink Wrapping Machine - Mass Filling

Our Semi-Automatic Bottle Shrink Wrapping Machine is a core piece of equipment in the bottle packaging line, specially designed for

PE film shrink wrapping of pop-top mineral water bottles, beer bottles, beverage bottles and other cylindrical or bottled products. It eliminates

the need for bottom trays in the packaging process, and matches with a PE shrink tunnel to realize tight and neat packaging of goods, which

is widely used in beverage, food, daily chemical and other industries.

The machine adopts advanced German manufacturing technology in the production process, and the core components are imported from

internationally renowned brands. This ensures stable equipment performance, low failure rate and long service life, which can meet the continuous

 production needs of small and medium-sized enterprises.

Key Features

1. Semi-Automatic Operation: Simple operation interface, easy to master, only 1-2 operators are needed to complete the packaging process, saving labor costs.

2. High Compatibility: Adapt to bottles of different specifications (diameter 30-150mm, height 50-300mm) by replacing the adjusting parts, with strong versatility.

3. Efficient Packaging: The maximum packaging speed reaches 15 packs per minute, and the PE film shrinkage rate is up to 95%, making the packaging tight and not easy to loosen.

4. Energy-Saving Design: The shrink tunnel adopts an intelligent temperature control system, which reduces energy consumption by 20% compared with traditional equipment.

5. Durable Structure: The main frame is made of stainless , which is corrosion-resistant and easy to clean, in line with food industry hygiene standards.

Technical paramter:

Model:WD-50A

Capacity: 2-5bag/min

Sealing time: 0.5-1.5s 0-0.5s

Shrink film :PE /PET/POF film

Power supply :1.8kw

Heating power:28kw (adjustable)

Conveyor loading: 30kgs

Conveyor speed:10rm/minute

Film thickness: 0.04-0.12mm

Max. Packing dimension: L *W *H  450*270*350MM

Min.Packing Dimension:L*W*H  250*60*60MM

Machine head dimension: 1020*830*1980mm

Shrink tunnel dimension:2200*780*1470mm

Machine weight :450KG

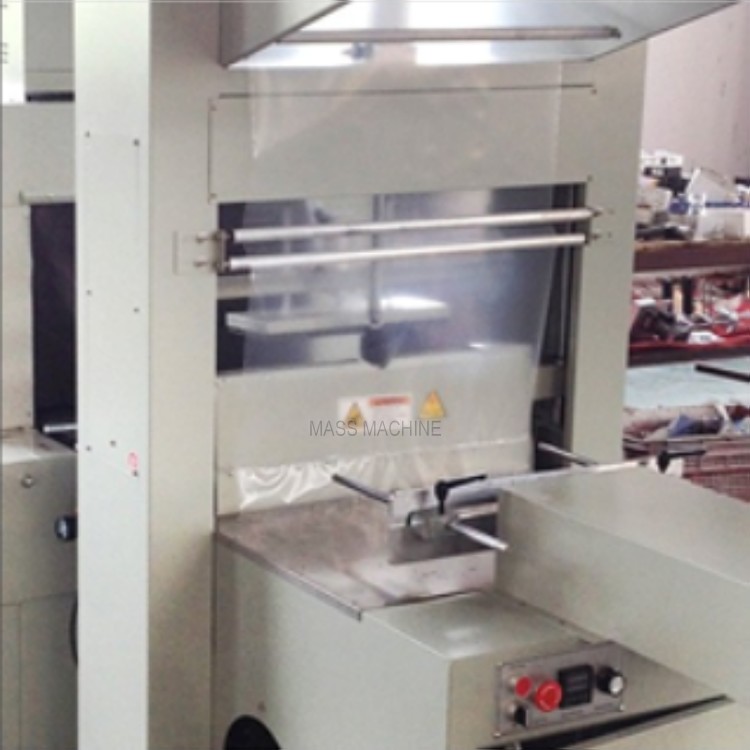

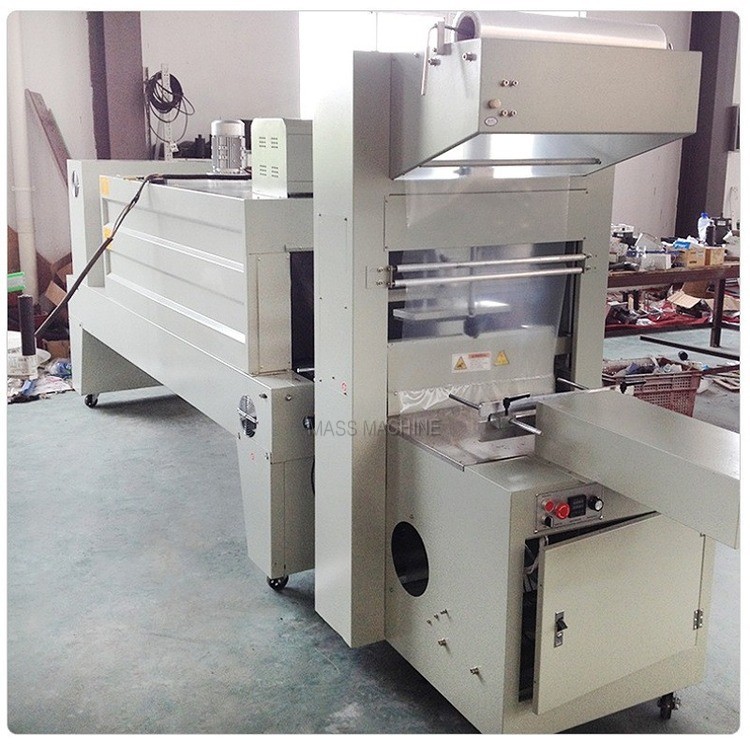

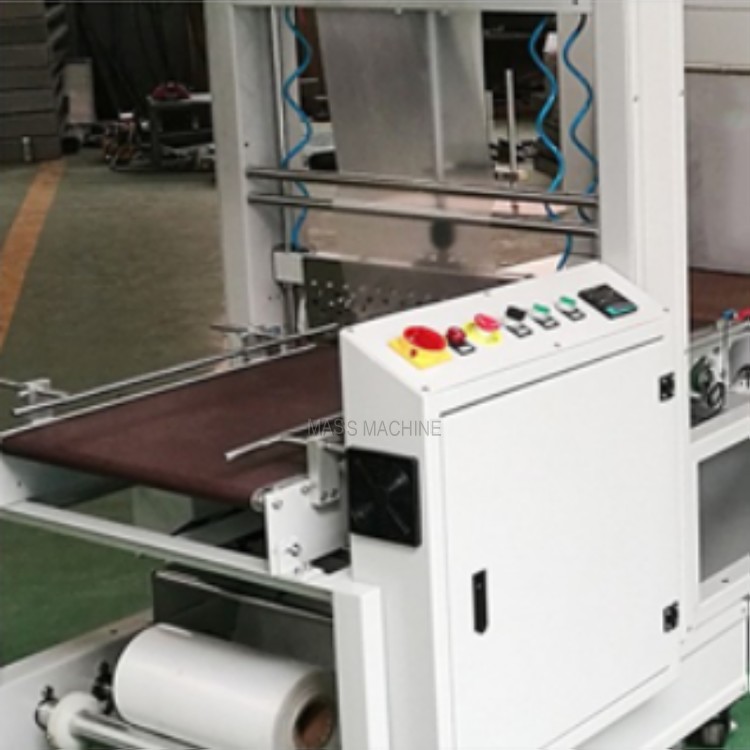

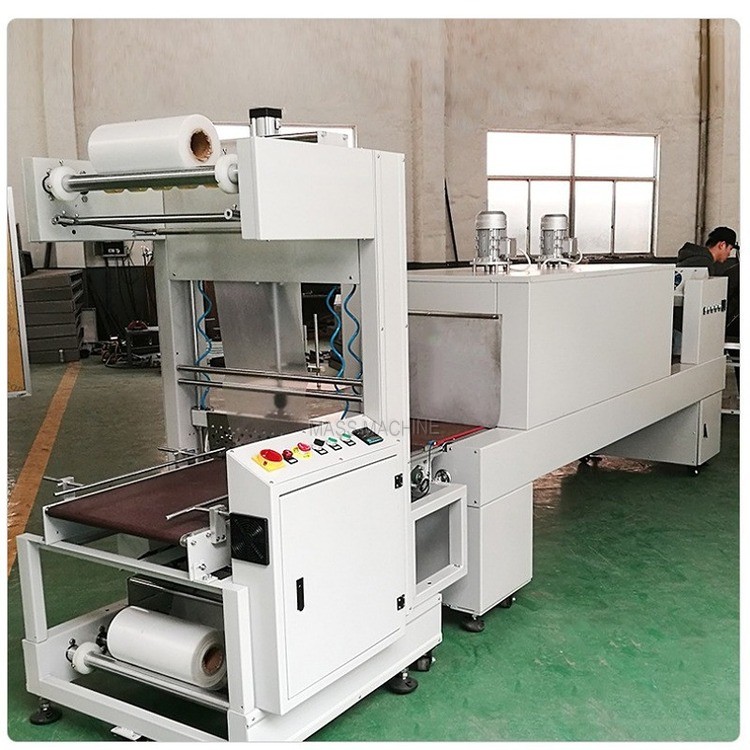

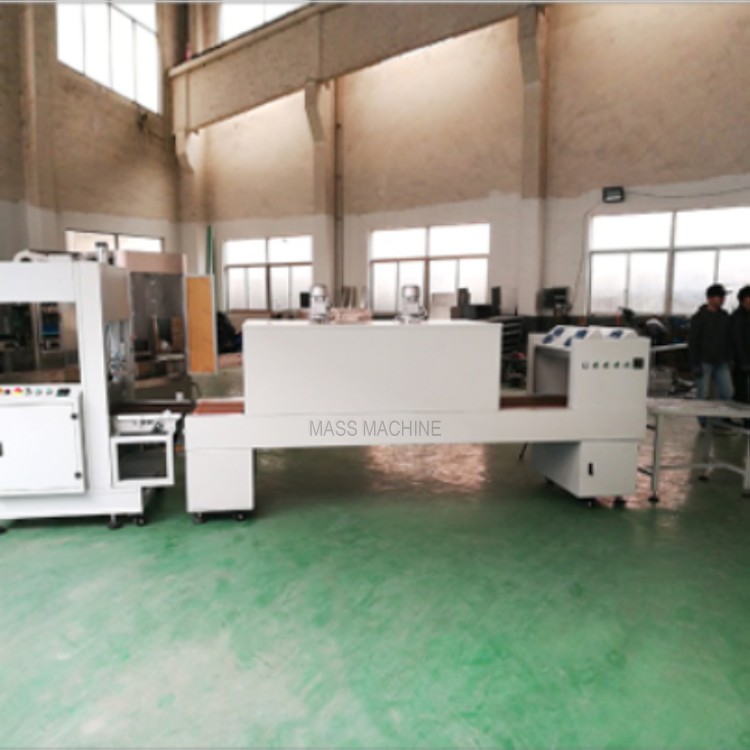

Photos:

Packing &Delivery

1. the drinking pure water filling machine is packed by wooden case.

2. The delivery date of drinking pure water filling machine is within 30 days after payment.

Application Scenarios

This Semi-Automatic Bottle Shrink Wrapping Machine is suitable for small and medium-sized beverage factories, mineral water production lines,

beer filling plants, and can also be used for packaging bottled condiments, cosmetics and other products. It is an ideal choice for enterprises that need

 flexible packaging and have moderate production capacity.

Why Choose Our Machine?

- German Technology: Adopt imported core technology to ensure equipment stability and packaging quality.

- Customization Service: We can customize the machine according to your product specifications and production needs.

- After-Sales Guarantee: Provide 12 months of free warranty and lifelong maintenance service, with professional technical team on-call support.

- Cost-Effective: Compared with fully automatic equipment, it has a lower investment cost and a quick return on investment.

FAQ

Q1: Can this machine be used for square bottles?

A1: Yes, it can be adapted to square bottles by replacing the positioning mold, and we can provide the corresponding mold according to your bottle shape.

Q2: How long is the delivery time?

A2: The standard model has a stock, and the delivery can be completed within 7 working days; the customized model needs 15-20 working days.

Q3: Do you provide installation and training services?

A3: Yes, we send professional technicians to the site for installation, commissioning and operation training, and provide detailed operation manuals and video tutorials.
